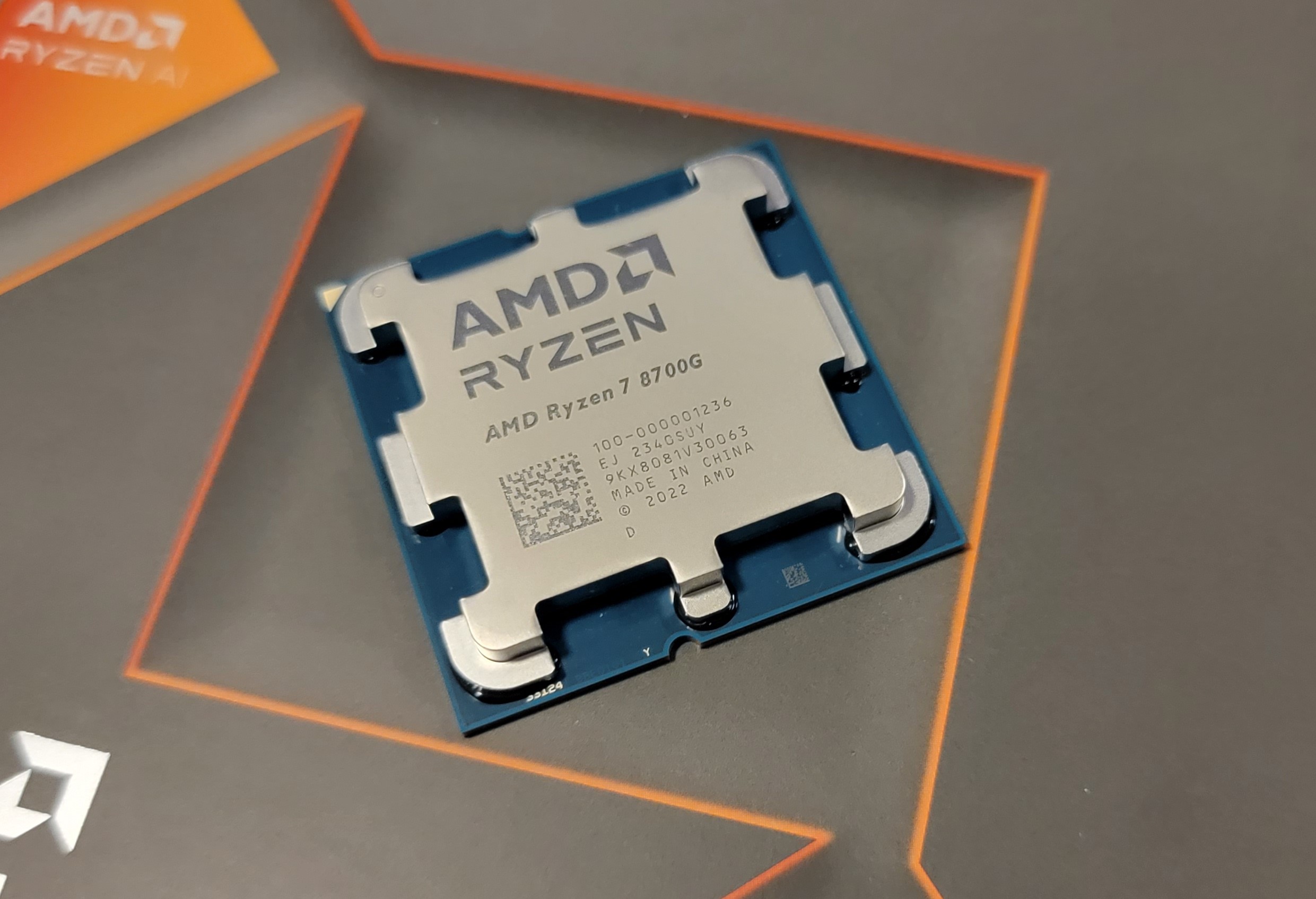

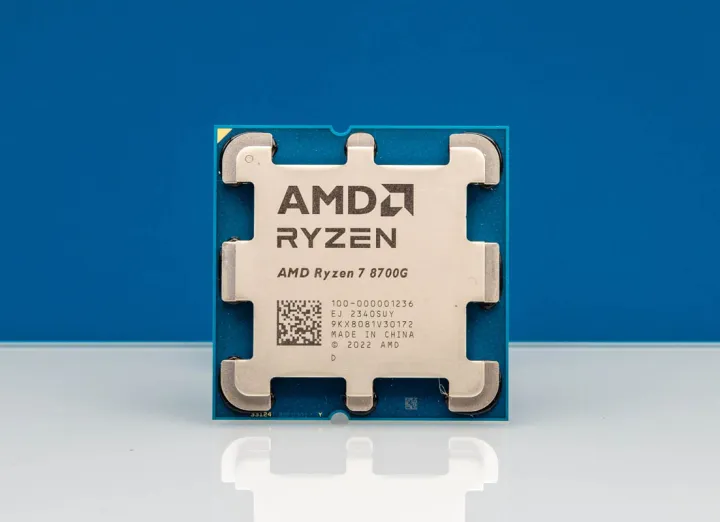

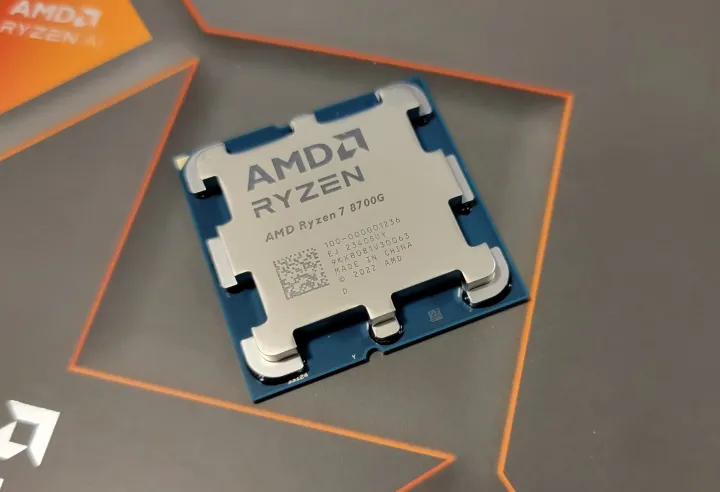

AMD Ryzen™ 7 8700G Desktop Processor

AMD Ryzen™ 7 8700G with AMD Ryzen AI is the ultimate all-in-one desktop processor with AMD Radeon™ 780M Graphics capabilities

General Specifications

Name: AMD Ryzen™ 7 8700G

Family: Ryzen

Series: Ryzen 8000 Series

Form Factor: Desktops

AMD PRO Technologies: No

Consumer Use: Yes

Regional Availability: Global

Former Codename: Phoenix

Architecture: Zen 4

# of CPU Cores: 8

Multithreading (SMT): Yes

# of Threads: 16

Max. Boost Clock: Up to 5.1 GHz

Base Clock: 4.2 GHz

L2 Cache: 8 MB

L3 Cache: 16 MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: TSMC 4nm FinFET

CPU Compute Die (CCD) Size: 178mm²

Package Die Count: 1

Unlocked for Overclocking: Yes

AMD EXPO™ Memory Overclocking Technology: Yes

Precision Boost Overdrive: Yes

Curve Optimizer Voltage Offsets: Yes

AMD Ryzen™ Master Support: Yes

CPU Socket: AM5

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax): 95°C

Launch Date: 1/31/2024

*OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps) Ports2

Native USB 3.2 Gen 2 (10Gbps) Ports2

Native USB 2.0 (480Mbps) Ports1

PCI Express® VersionPCIe® 4.0

Native PCIe® Lanes (Total/Usable)20 , 16

NVMe SupportBoot , RAID0 , RAID1

System Memory TypeDDR5

Memory Channels2

Max. Memory256 GB

System Memory SubtypeUDIMM

Max Memory Speed

2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

Graphics Capabilities

Graphics ModelAMD Radeon™ 780M

Graphics Core Count12

Graphics Frequency2900 MHz

DirectX® Version12

DisplayPort™ Version2.1

DisplayPort ExtensionsAdaptive-Sync , HDR Metadata , UHBR10

DisplayPort Max Refresh Rates (SDR)7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR)7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

HDMI® Version2.1

HDCP Version Supported2.3

USB Type-C® DisplayPort™ Alternate ModeYes

Multi-Monitor SupportYes

Max Displays4

AMD FreeSync™Yes

Wireless DisplayMiracast

Max Video Encode Bandwidth (SDR)

1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

Max Video Decode Bandwidth

1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess MemoryAvailable

AI Engine Capabilities

Brand NameAMD Ryzen™ AI

AMD Ryzen™ AIAvailable

PerformanceUp to 16 TOPS

Security, Virtualization, and Manageability

AMD Enhanced Virus Protection (NX bit)Yes
