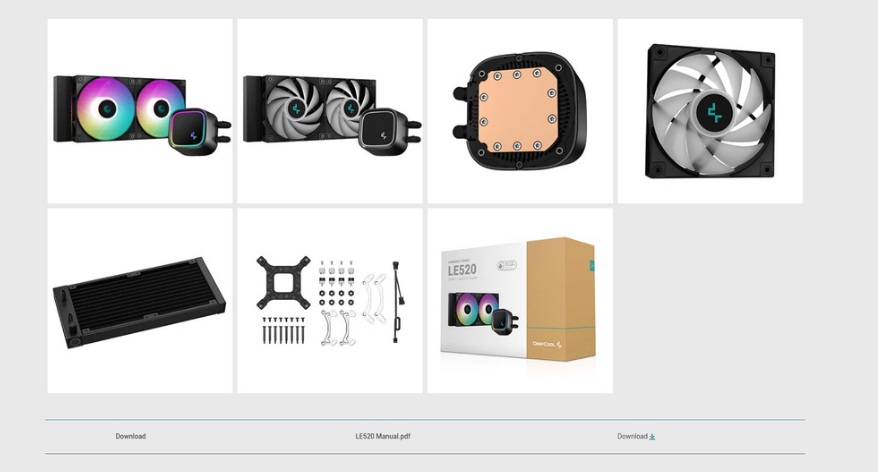

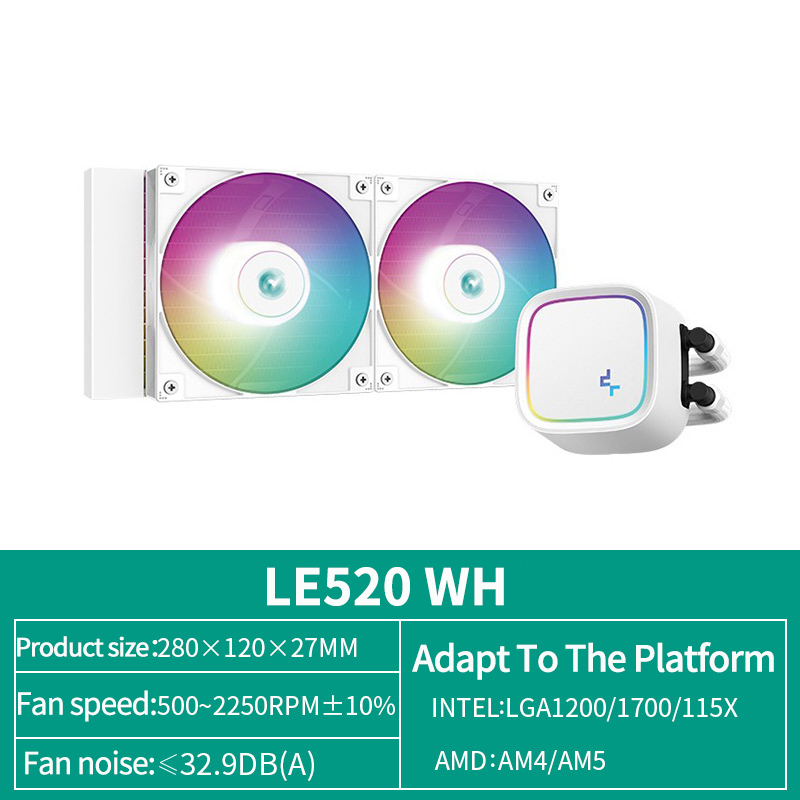

LE520 240mm ARGB AIO Liquid Cooler
【Powerful heat dissipation】
The heat dissipation power is as high as 220W, and it is equipped with a new high-performance ARGB fan to achieve the best heat dissipation effect.
【New family design】
It adopts a new family design cold head, rounded square cold head, with circular colorful ARGB lights, simple and durable. 52mm cold head height, compatible with various ITX case installations.

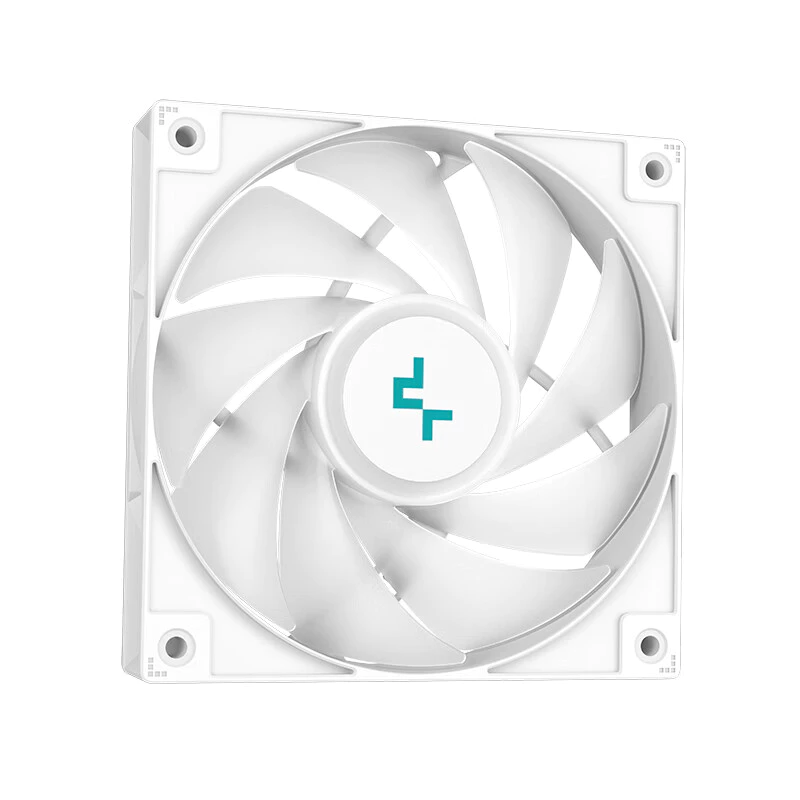

【High performance ARGB illusion fan】
Equipped with a high-performance ARGB fan, it supports the synchronization of motherboard lights, and the colors are more stunning. It can realize low noise and stable operation under the noise level of 30db.

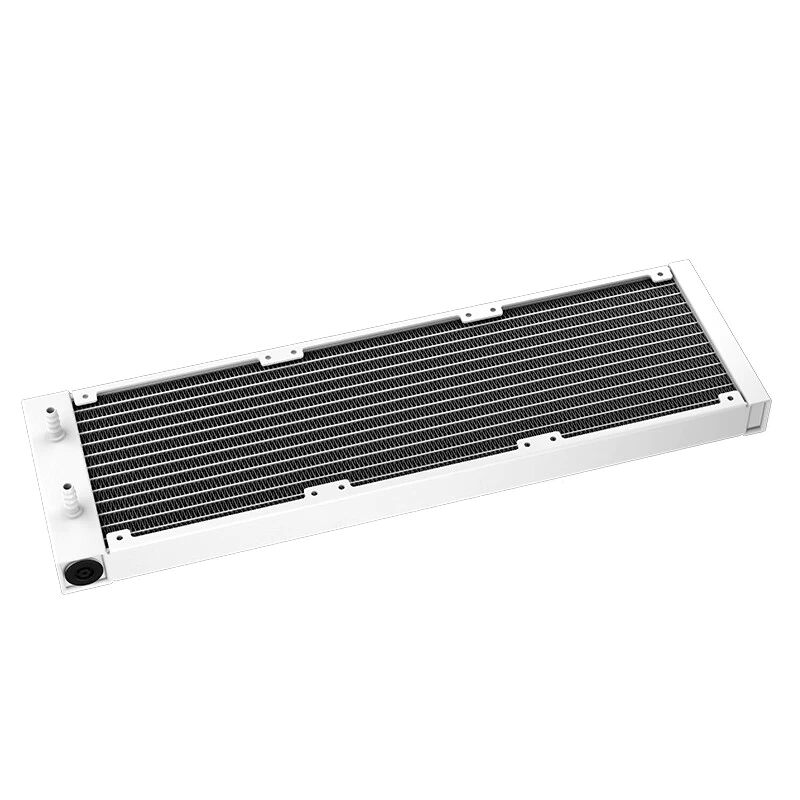

【Dynamic balance pressure relief cold row】
The unique pressure relief cold row and EPDM liquid cooling special sealing rubber can effectively reduce the risk of liquid leakage and have a longer service life.
Application
Intel LGA1700/1200/1151/1150/1155
AMD AM5/AM4
LE520
Technical specifications
Net weight: 1238 g
Cold row size: 282×120×27 mm
Cold row material: Aluminum
Water pipe length: 410 mm
Water pump size: 91×80×52 mm
Pump speed: 2400 RPM±10%
Water pump noise: 17.8 dB(A)
Water pump terminal: 3-pin
Pump rated voltage: 12 VDC
Pump rated current: 0.2 A
Pump power consumption: 2.4 W
Fan size: 120×120×25 mm
Fan speed: 500~2250RPM±10%
Fan air volume: 85.85 CFM
Fan pressure: 3.27 mmAq
Fan noise: ≤32.9 dB(A)
Fan terminal: 4-pin PWM
Bearing type: Hydro Bearing
Fan rated voltage: 12 VDC
Fan rated current: 0.25 A
Fan power consumption: 3.0 W
LED Type: Addressable RGB LED
LED interface: 3-pin(+5V-D-G)
LED rated voltage: 5 VDC
LED power consumption: 2.25 W (PUMP) / 2.1 W (FAN × 2)
EAN: 6933412728047
P/N: R-LE520-BKAMMN-G-1
LE720
Technical specification
Net weight: 1570 g
Cold row size: 402×120×27 mm
Cold row material: Aluminum
Pipe length: 410 mm
Pump size: 91×80×52 mm
Pump speed: 2550 RPM±10%
Pump Noise: 17.8dB (A)
Pump terminal: 3-pin
Water pump rated voltage: 12 VDC
Rated current of water pump: 0.21A
Pump power consumption: 2.52W
Fan size: 120 x 120 x 25 mm
Fan speed: 500 to 2250RPM±10%
Fan air volume: 85.85 CFM
Fan air pressure: 3.27 mmAq
Fan noise: ≤ 32.9dB (A)
Fan terminal: 4-pin PWM
Bearing form: Hydro Bearing
Rated fan voltage: 12 VDC
Rated fan current: 0.25A
Fan power consumption: 3.0W
LED type: Addressable RGB LED
LED interface: 3-pin(+5V-D-G)
LED rated voltage: 5 VDC
LED power consumption: 2.25W (PUMP) / 3.15W (FAN×3)
EAN: 6933412728191
P/N: R-LE720-bKamN-G-1
